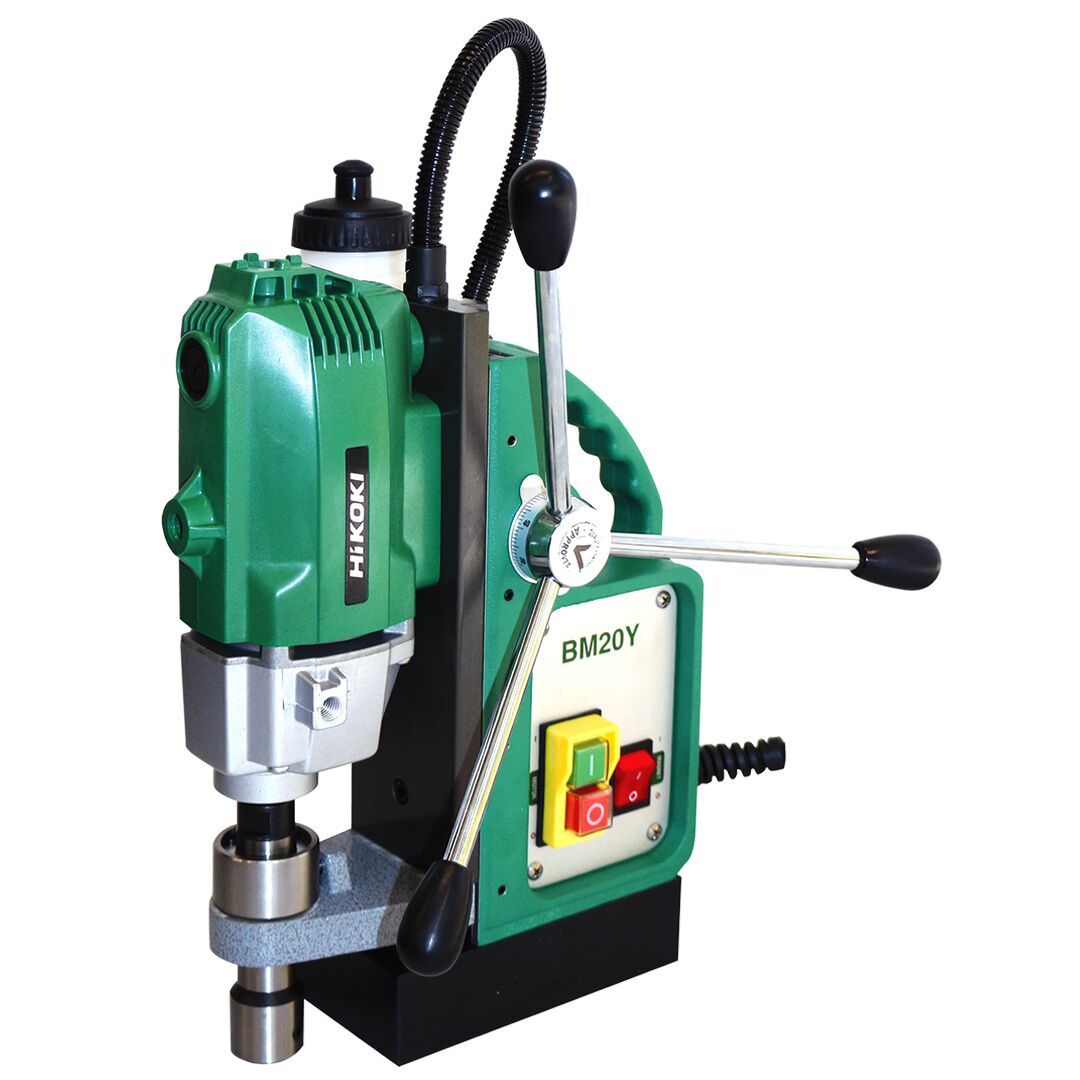

The Hikoki BM20Y2 magnetic base drill is a very powerful magnetic base drill. Thanks to the newly designed magnetic base, this magnetic feed drill makes it extra safe. Accessories supplied with this drill; 13 mm drill head, drill head wrench, safety chain, coolant reservoir, four allen keys, centre pin, set of earplugs, English wrench, spray can of drilling oil, safety glasses, gloves, weldon shaft 19 mm for metal cutters in a plastic case.
Features
- Automatic cutting fluid supply
- Additional safety due to newly designed magnetic foot
Technical specifications
Capacity (depth) : 30 / 55 mm
Drill diam. with metal drill bits : 1,0 – 13 mm
Drill diam. with metal cutters : 13 – 32 mm
Power consumption : 720 W
No load speed : 550/ min
Load speed : 440/ min
Magnetic tensile force : 12000 Nm (1,200 Kg)
Dimensions magnetic base : 80 x 160 mm
Weight : 11,7 kg
Attention: To be able to use the 13mm drill head, an optional adapter is required (art. no. 712080).

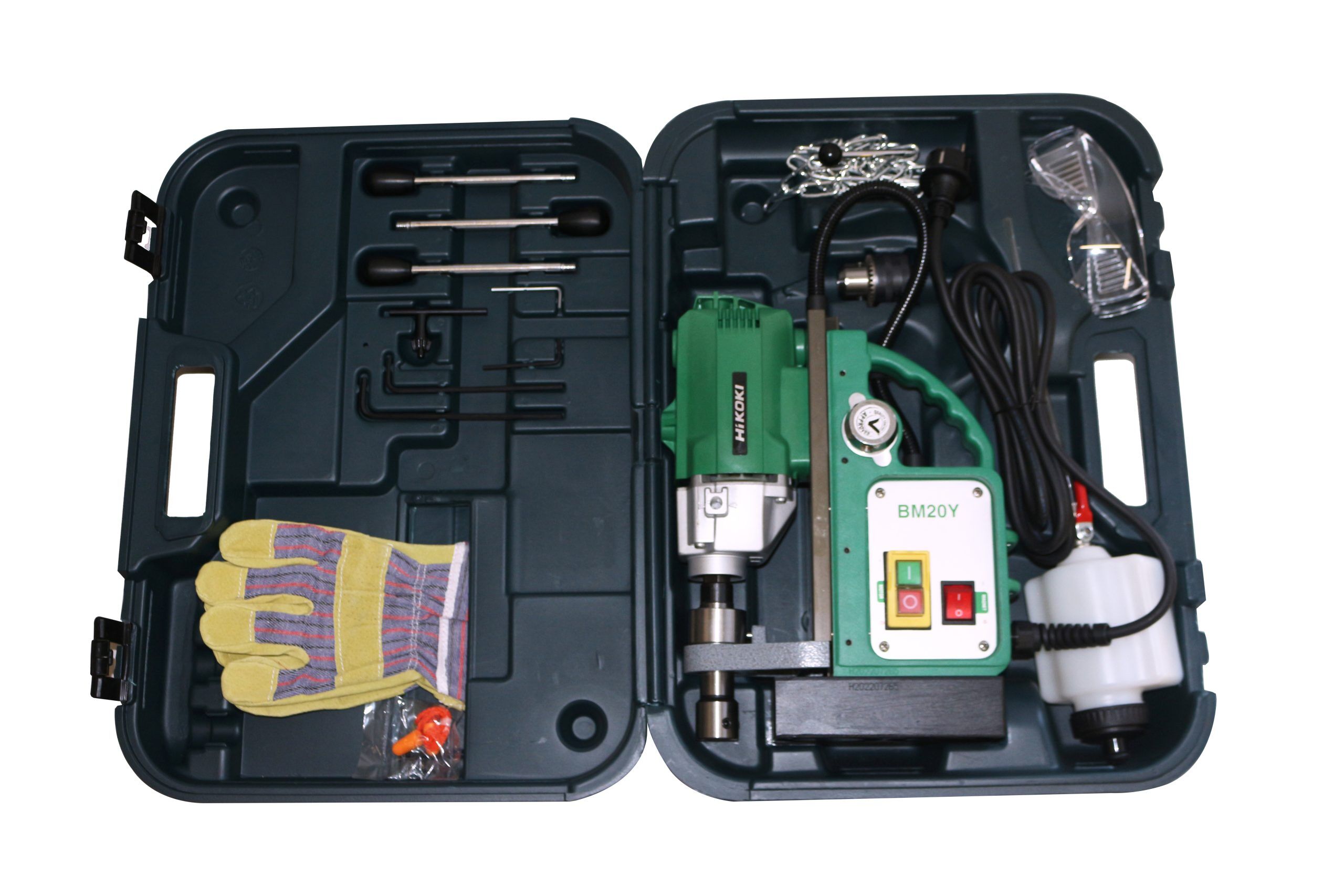

What’s in the box?
Standard accessories:
1 tool holder, 1 drill chuck 13 mm, 1 drill chuck key, 1 safety chain, 1 coolant reservoir, 4 Allen keys, 1 set of earphones, 1 English key, 1 safety goggles, Weldon shaft 19 mm, 1 plastic case, 1 oil
