What is the S.A.T. System?

Do you want to take your work with oxyfuel hand cutting torches to a new level of safety? Then the new S.A.T. system from Messer Cutting Systems is exactly what you need. Messer Cutting Systems have always strived to increase the safety of their products and to make the operation of the Messer torches safer for their users. For this purpose, our experts have developed the complete S.A.T. system, consisting of S.A.T. valve and S.A.T. hand cutting torches.

The longer the hose, the more susceptible it is to damage, whether it is damage from flying sparks, sharp-edged objects or other hazards in the workplace. With a conventional torch system, these leaks on the hose usually go unnoticed because the working behaviour with the torch does not change and the user therefore has no indicator of a leak.

The system solves this problem by extinguishing the flame on the torch if the hose line is damaged. In addition, the gas supply is automatically stopped after the S.A.T. valve. Furthermore, the S.A.T. system eliminates the need to adjust the flame. Thus, the S.A.T. system not only provides a significant plus in safety at the workplace, but also saves you time and provides more comfort when adjusting the flame.

Advantages of S.A.T. System

+ Huge improvement in safety for the user moving safety to new levels
+ Detects leaks and damages to the hose assembly beyond the S.A.T. valve
+ Eliminates the risk of leakage by stopping the gas supply
+ User notices leakage in the hose line as the gas supply is stopped and the flame will extinguish
+ Available with internationally common connections ie. 3/8” BSP, 9/16” UNF, M16x1.5mm
+ ECO S.A.T. nozzles available for acetylene and propane
+ High level of simplicity during nozzle exchange owing to the quick-release exchange system at the torch head
+ Available with different hand-cutting torches and/or welding or brazing torches
+ Excellent adjusted flame.  Little need for the user to readjust the flame

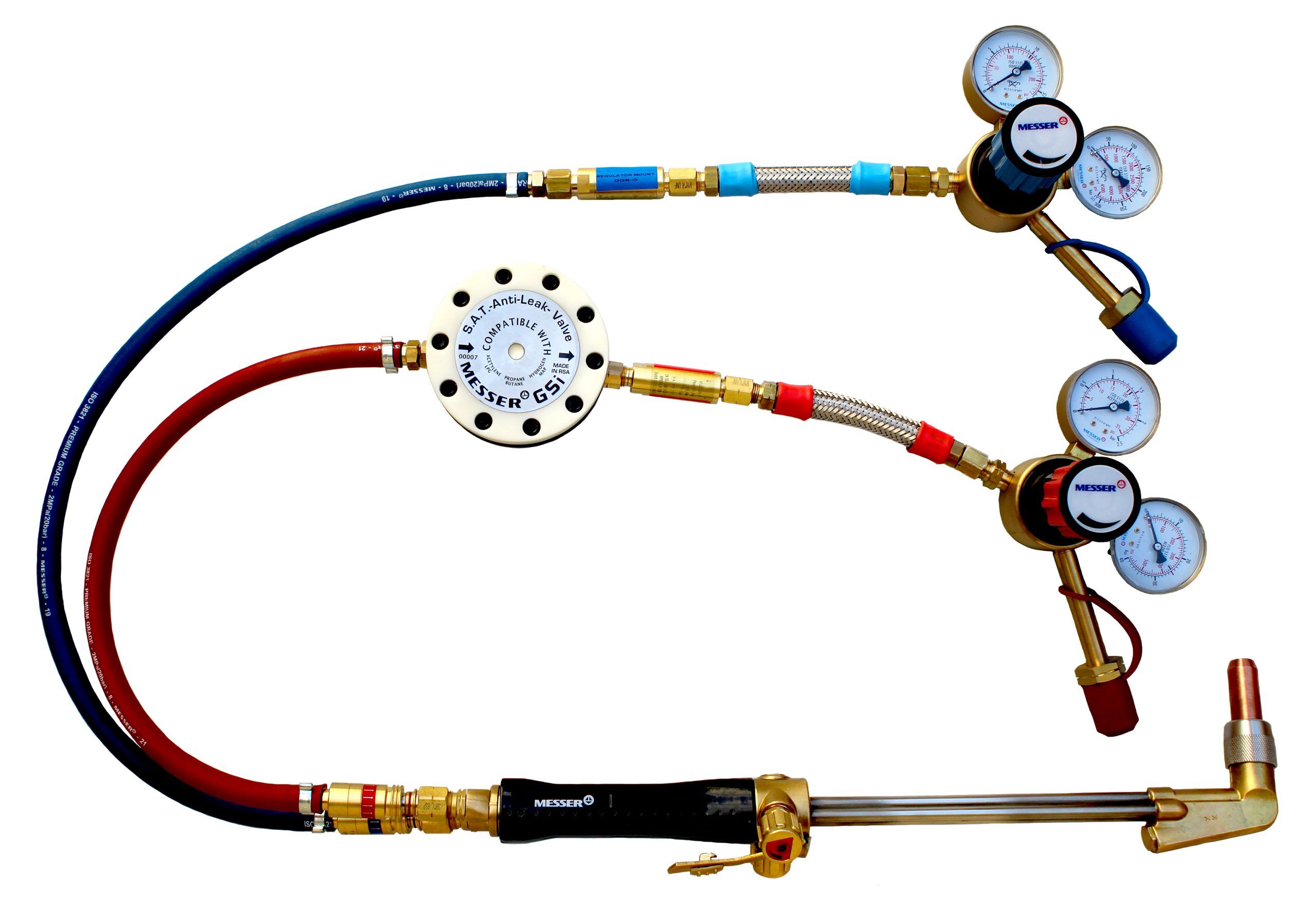

What does the S.A.T. System consist of?

MES-77021894

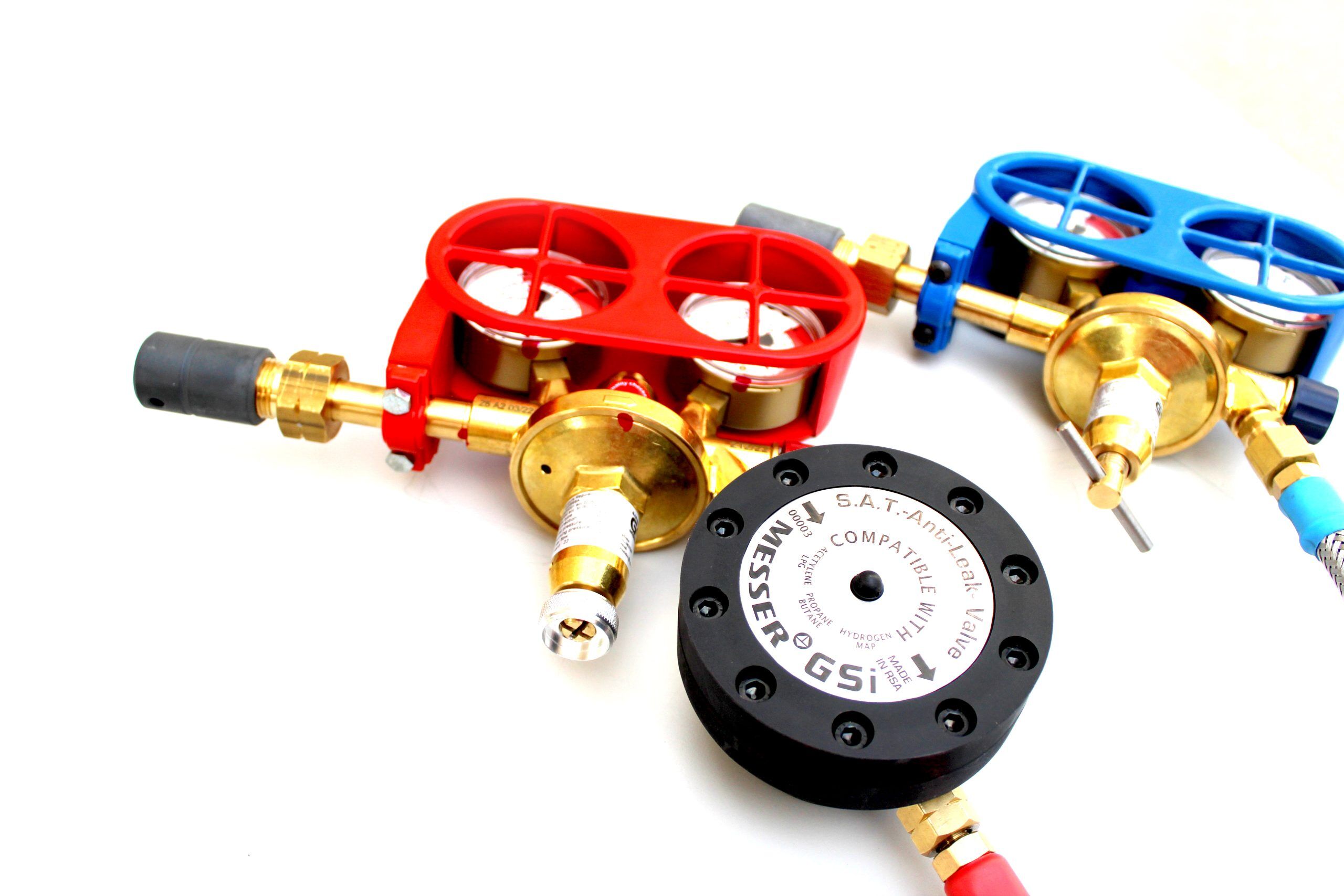

Oxygen Regulator Single Stage Tornado 9/16” EN-ISO 2503
Acetylene Regulator Single Stage Tornado 9/16” EN-ISO 2503
Reinforced Regulator Hose ISO 2063 compatible for Oxygen, Acetylene, LPG
Flashback Arrestors SANS 50730-1 compatible for Oxygen and Fuelgases
S.A.T. Valve 9/16” LH UNF WHITE LID compatible for Hydrogen, LPG,Acetylene, MAP, Chemtane
Oxygen hose SANS 3821 x 8mm I.D.
Acetylene hose SANS 3821 x 8mm I.D.
[Optional] Quick Coupling ISO 7289
Messer STARCUT 5622-A S.A.T. Cutting Torch compatible for Hydrogen, LPG, Acetylene, MAP, Chemtane EN-ISO 5172

Bolt & Engineering Distributors (Group) B.E.D. is a proud authorized distributor of Messer Oxyfuel products, systems, and solutions for Sub-Saharan Africa. This partnership allows B.E.D. to offer high-quality Messer Oxyfuel equipment, renowned for their efficiency and reliability, to customers across the region. With a commitment to excellence and customer satisfaction, B.E.D. ensures that industries in Sub-Saharan Africa have access to the best in cutting and welding technology.
To book an on-site demonstration, email Craig Bister at craig@bolteng.co.za

Download the brochure here;  SAT_System_EN

Download the information booklet here:  Messer SAT System Information Booklet _2023
