Fluke SMFT-1000 Solar Tools Kit

All-in-one test solution to verify PV system performance and safety, expedite client reporting.

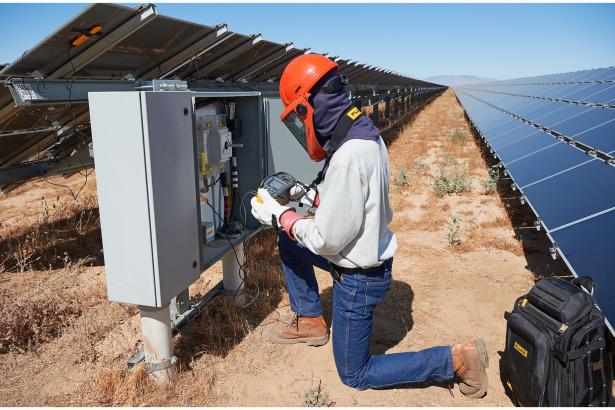

Test that PV systems are performing to their optimal power output as well as operating safely with the Fluke SMFT-1000 multifunction tester with I-V curve tracing.  Designed for PV professionals that provide installation, commissioning and maintenance services to systems that operate at 1000 V DC or under, the SMFT-1000 provides a complete PV testing solution that conforms to IEC 62446-1 standards. Through Fluke’s TruTest™ Software, measurement data from solar site installation and commissioning testing can be easily imported, organized and analyzed for effortless reporting without having to bring a laptop on-site.

SMFT-1000 Solar Tools Kit: Fluke Multifunction PV Tester and Performance Analyzer, I-V Curve Tracer



Key features
  • All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
  • Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC
  • Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC
  • On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen
  • Compatible with Fluke TruTest™ data management software



Critical testing features for periodic inspection of PV systems

Full sequence safety testing – IEC 62446-1 Category 1:

  • Protective resistance earth (Rpe)
  • Voltage on open circuit (Voc)
  • Short circuit current (Isc)
  • Insulation resistance (Rins)
  • Polarity

ROI and system performance testing – IEC 62446-1 Category 2:

  • I-V Curve tracing and software analysis with TruTest
  • Irradiance, temperature, tilt, cardinal direction



  • Wireless Irradiance Meter: No leads required
  • Color Screen with Integrated Interface: On-screen instructions provide an easy walkthrough of tests
  • On-location I-V curve results: compare manufacturer I-V curve data to measured data instantly
  • Record visual inspections, then manage data with TruTest™ Solar Software

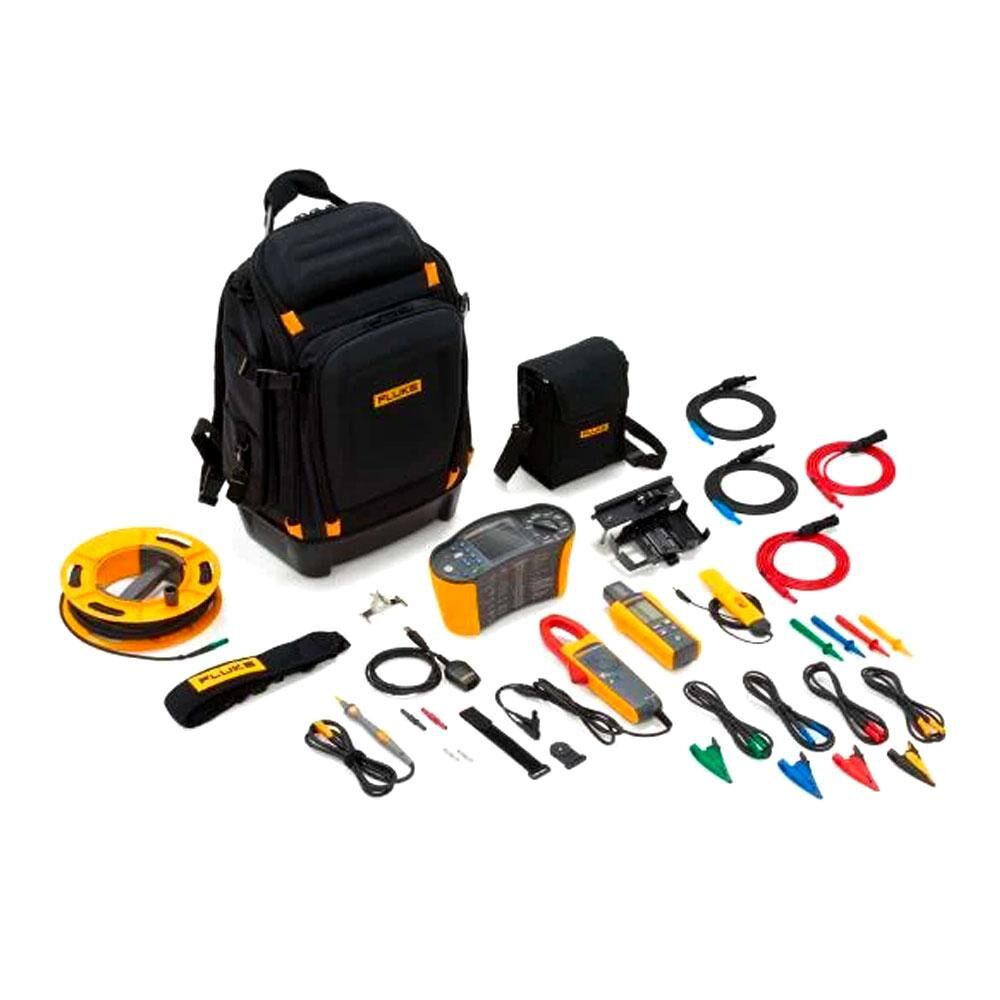

What’s in the box:
  • Fluke SMFT-1000-BP Professional Tool Backpack

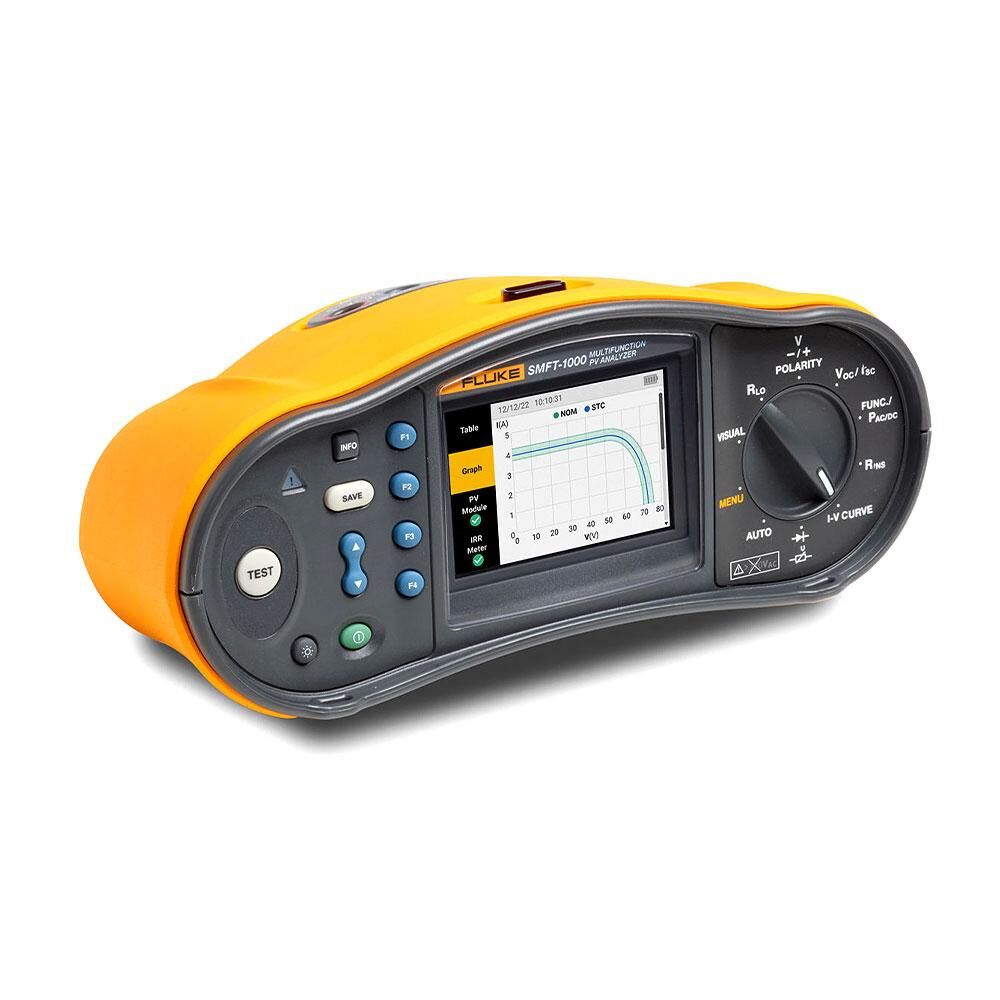

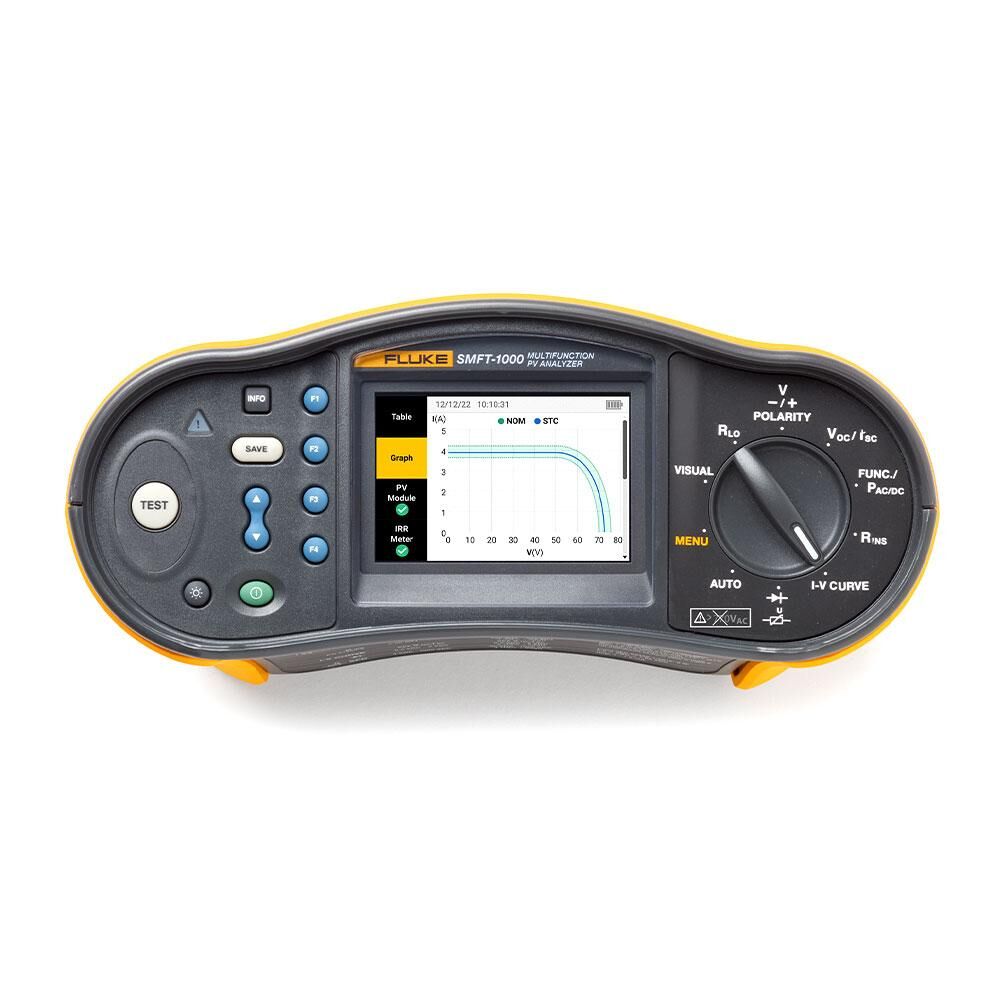

  • SMFT-1000 Multifunction PV Analyzer
    1. Carry Strap
    2. Fuse Pack
    3. Adapter Cable IRDA Optical-to-USB
    4. Zero Adapter
  • IRR2-BT Wireless Solar Irradiance Meter Pro
    1. 80PR-IRR External Temperature Probe
    2. Mounting Bracket for solar panel
    3. Carry Case
  • i100 AC/DC Current Clamp 100 A
    1. TPAK Magnet Set
  • TP1000 Test Probe with Remote Test Button
  • TL1000 Test Lead Set
  • TL1000-MC4 Test Lead Set
  • TL1000/30M Test Lead on Reel
  • Coupler set
